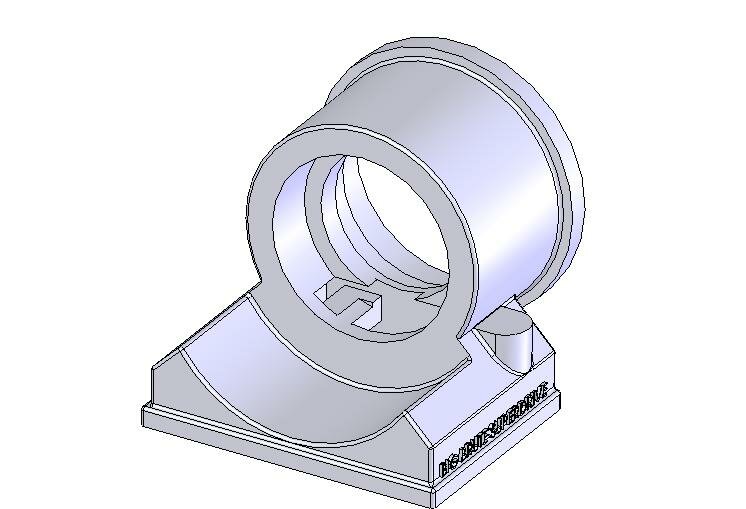

We can produce aluminum casting part drawings for both the permanent mould and die cast moulding processes. for the pump industry we produce Casting drawings for pump volutes, impellers, motor mounts and more

In either case we can apply our experience to produce an aluminum casting part drawing that incorporates proper draft angles and appropriate machining allowances.

The permanent mould aluminum casting process is more suited to low volume production or prototype parts such as house numbers, medallions, novelty items and ornaments. We can use solidworks to create these parts and use the the software to predict the ultimate weight of the part to enable you to find the most economical part design. We can address manufacturing difficulties before expenses are incurred in producing tooling.

If you have a new product and require aluminum alloy casting we can help you with its production. We deal closely with aluminum foundries and have sources for the manufacture of the part in addition to doing the design and drafting work for the aluminum alloy casting or aluminum die casting part drawings. Please contact us if you have any requirements.

for more information on aluminum casting try turning to the handbooks produced by the A.S.M. These are highly detailed and offer a wealth of information on material selection. Click the link to the ASM Aluminum and Aluminum Alloys handbook
